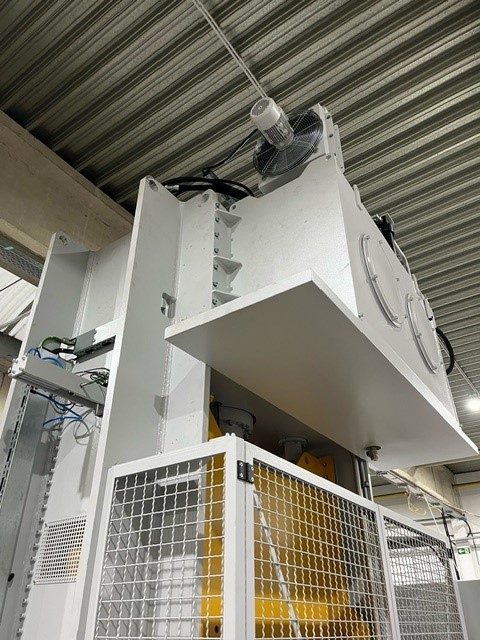

G+K HVZ 80/S hydraulic double column press PR2497, used
details
| Hydraulic double columnPress | |
| Manufacturer | G+K |
| Type | HVZ 80/S |
| Design | Hydraulical |
| Year of manufacture | 2023 |
| Technical data | |
| Compressive force | max. 800 kN |
| Ram stroke |
max. 800 mm |
| Installation height |
900 mm |

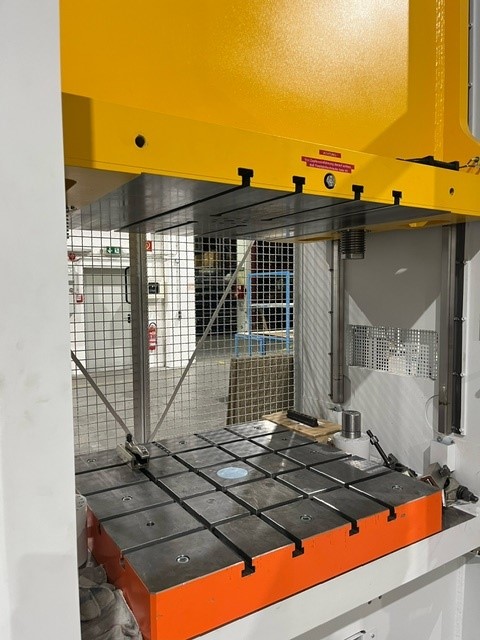

| Table surface (width x depth) | 1000 x 1000 mm |
| Plunger surface (width x depth) |
1000 x 1000 mm |
| Plunger bore diameter ( H7 ) |
50 mm |
| T-slots H 12 DIN 650 |
18 mm |
| Table height above floor |
900 mm |
| Front upright clearance |
1050 mm |
| Column passage sideways |
by arrangement |
| Rapid traverse speed |
infinitely variable up to 300 mm/sec. or 300 mm/sec |
| Working speed |
infinitely variable up to max. 36 mm/sec. at
half the nominal load
up to max. 18 mm/sec. at full nominal load |
|
Colour |
light grey RAL 7035 |
| Special paint finish |
at an extra charge |
| Operating and control voltage |
400/230 V, 50 Hz |
Nominal force finely adjustable from 160 to 800 kN Cutting impact damping at the bottom, up to 15 mm before bottom dead centre. Adjustable between 100mm and 300mm of the ram above the table top Eccentric load only in conjunction with hydraulic parallel compensation
| Delivery time | immediately |
| Price | on request |
