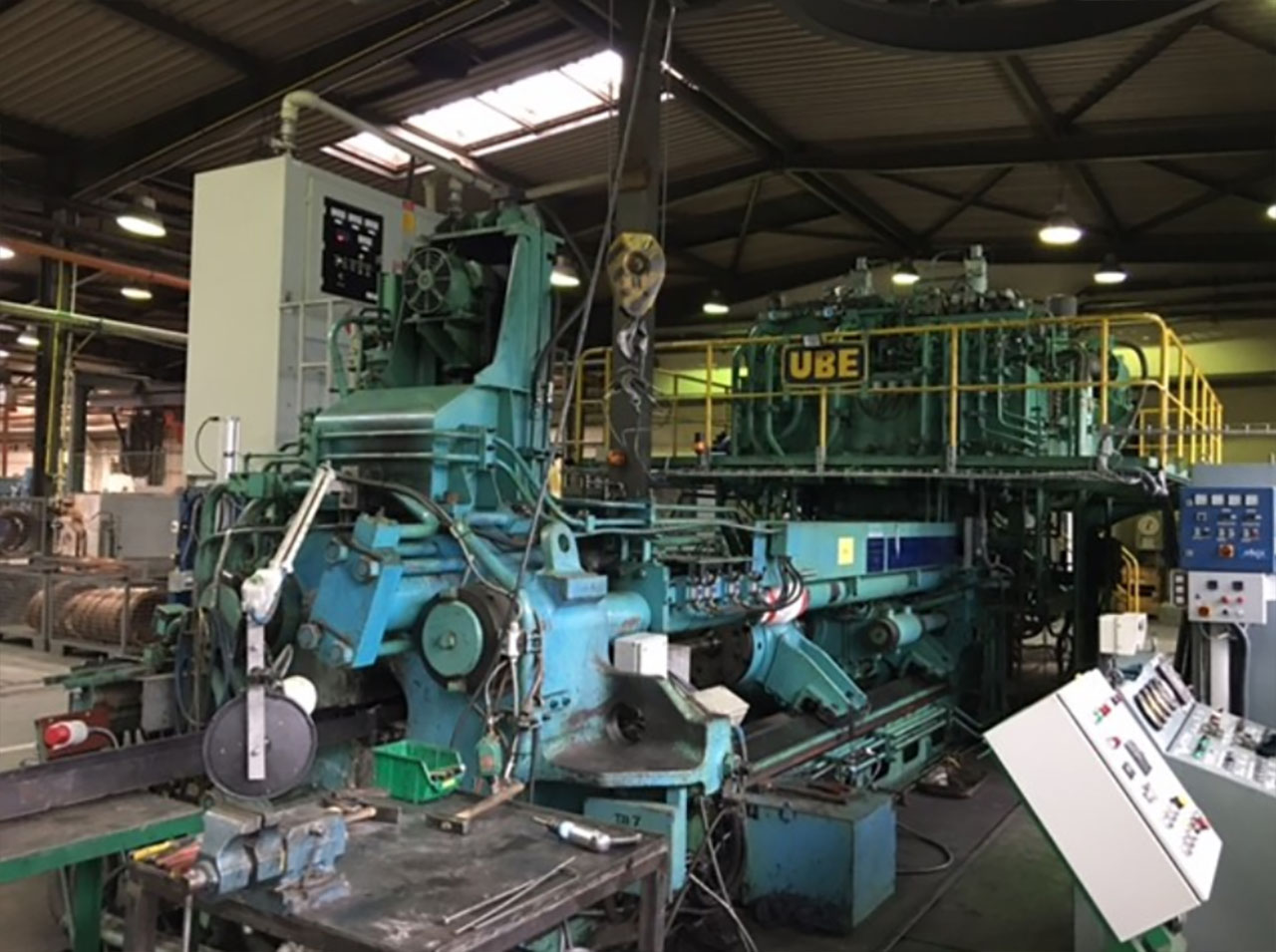

UBE 800T aluminium extrusion press PR2469, used
details
| Extrusion press | |
| Manufacturer | UBE |
| Model | 800 |
| Locking Force | 800 t |
| Year of Manufacture | 1979/2008 |
| Comments | Machine is available without inductor heater, for aluminium |
Technical data
| Dimensions of recipient | |
| Diameter | 132mm x 560mm |
| Diameter | 127mm x 560mm |
| Diameter | 90mm x 555 mm |
| Efficiency | |
| Squeezing (maximum tonnage) | 210kg / cm2 800 M Ton |
| Squeezing (minimum tonnage) | 210kg / cm2 697 M Ton |
| Servo-side depth. the piston rod forward | 210kg / cm2 112 M Ton |
| Servo-side depth. rod return | 210kg / cm2 63 M Ton |
| Sealing recipient | 210kg / cm2 69 M Ton |
| Opening recipient | 210kg / cm2 94 M Ton |
| Puncture | 210kg / cm2 102 M Ton |
| Shift matrix | 210kg / cm2 12 M Ton |
| Stroke depth. cylinder | 1320mm |
| Stroke cylinders recipient | 250mm |
| Max speed | |
| Squeezing the maximum tonnage | 38.0mm / sec |
| Squeezing the minimum tonnage | 44.0mm / sec |
| Sealing recipienta | 350mm / sec |
| Opening recipienta | 330mm / sec |
| Puncture | 300mm / sec |
Pumps
| Variable axial plunger | |
| Manufacturer | Kawasaki |
| Model | BZ74FS-210R-AR150 |
| 210kg / cm2 x 450 liters / min 1000 rpm / min 2 pcs |
| Fixed-speed paddle | |
| Manufacturer | TOKYO Keiki |
| Model | SQP43-50-30-86-cc-29-15 |
| 70kg / cm2 x 148/88 liters / min 1000 rpm / min 1 pc. |
| Constant axial plunger | |
| Manufacturer | |
| Model | UCHIDA RPF20-15-A-LA-220 |
| 210kg / cm2 x 14 liters / min 1000 rpm / min 1 pc. |
| Supply pump | |
| Manufacturer | Kawasaki |
| Model | IMO 60-4N5YA |
| 70kg / cm2 x 148/88 liters / min 1000 rpm / min 1 pc. |
| Constant axial plunger | |
| Manufacturer | |
| Model | UCHIDA RPF20-15-A-LA-220 |
| 15kg / cm2 x 545 liters / min 3000 rev / min 2 pcs. |
| Recipient heating | |
| Power | 22 kW |
| Delivery time | immediately |
| Price | on request |
