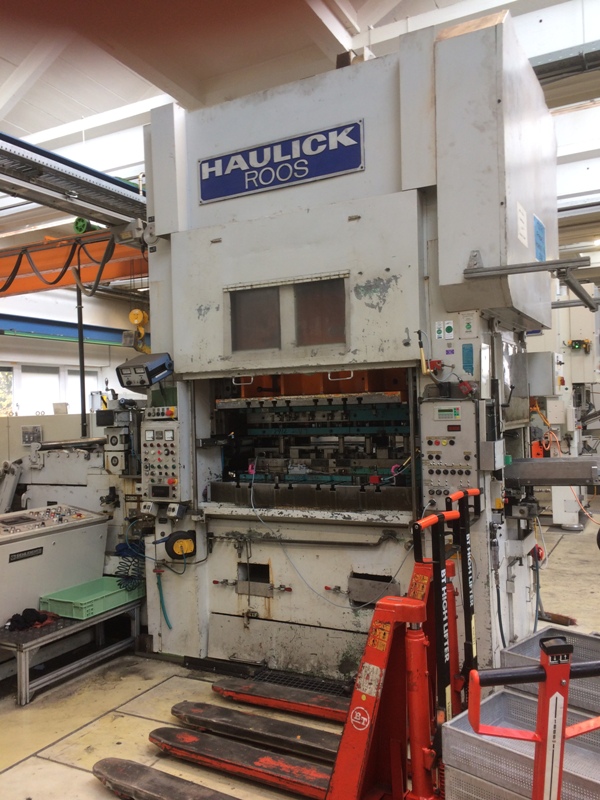

Haulick RV 160-1600 R Punching press PR2467, used
details
| Punching press | |
| Manufacturer | Haulick |
| Year of manufacture | 1980 |
| Last revision | |
| Comment |
Technical Data
| Press design | |
| Number of suspensions | 2 |
| Number of slide actions | 1 |
| feedstock transport direction | left to right |
| Press | |
| Force | 1600 kN |
| Table surface (left-right) | 1500 mm |
| Table surface (front-back) | 1200 mm |
| Thickness of bolster plate | 240 mm |
| Opening in bed (left-right) | 1300 mm |
| Opening in bed (front-back) | 300 mm |
| Number of T-slots | 8 |
| Slide | |
| Slide force | 1600 kN |
| Table surface (left-right) | 1550 mm |
| Table surface (front-back) | 1200 mm |
| Stroke | 120 mm |
| Stroke rate max. | 150 /min |
| Slide adjustment | 150 mm |
| Stroke rate min, | 15 /min |
| Stroke rate max. | 150 /min |
| Tool assembly dimensions | |
| Shut height (stroke down, adjustment up) BDC | 470 mm |
| Distance between columns (H-frame) | 1600 mm |
| Passline opening (free passage in side columns) | 700 mm |
| Free passe between side columns (height) | 700 mm |

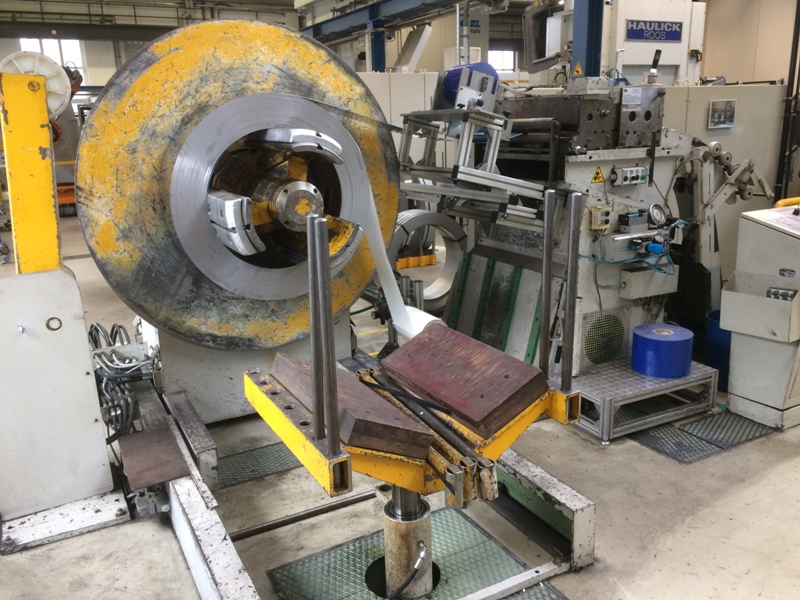

| Decoiler | |
| Manufacturer | Schleicher |
| Year of manufacture | 1974 |
Technical Data
| Decoiler | |
| Coil weight max. | max 5 t |
| sheet width max. | 650 mm |
| Diameter of coil max. | 1500 mm |
| Mandrel expansion range | 450 - 520 mm |
| Leveller unit | |
| sheet thickness | 0.5 ÷ 2.5 mm |
| Number of leveller rolls | 6 |
| Number of infeed/outfeed rolls | 2 |
| Feed velocity | 6 - 30 m/min |
| Loop controls | yes |
| Strip-feeder | |
| Feeding step max | 9999.9 mm |
| Pilot release system | yes |
| Total height | 4500 mm |
| Weight | 26 t |
| Delivery time | immediately |
| Price | on request |
